- Frequency Response / Acoustic Data:
- - 19-310Hz ± 3 dB
- - Roll-off slope specifically optimized to take maximum advantage of available room gain
- - 2-meter ground plane away from reflective structures (quasi-anechoic).

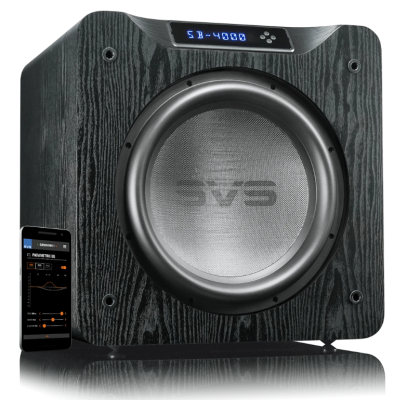

- Subwoofer Specs:
- - Premium Black Ash and Piano Gloss Black finish options
- - Protective non-resonant steel mesh grille
- - Front-firing 13.5" driver
- - Rear-mounted amplifier
- - Screw-in rubber feet
- - Robust Medium Density Fiberboard(MDF) cabinet construction
- - Cabinet Dimensions (without grille): 18.3” (465mm) H X 17.8” (453mm) W X 18.6” (471.3mm) D
- - Cabinet Dimensions (with grille): 18.3” (465mm) H X 17.8” (453mm) W X 20.9” (530mm) D
- - Shipped Dimensions: 23.5” (598mm) H X 23.5” (598mm) W X 28” (712mm) D
- - Weight (unboxed): 102.3 lbs. (46.4 kg)
- - Shipped Weight: 117.8lbs (53.45kg)Driver Specs:
- - High-performance SVS 4000 Series Subwoofer Driver - optimized for sealed cabinet design.
- - Proprietary 13.5” Driver with finely tuned Overhung Motor Configuration
- - 43lb (19.5kg) pound Woofer with 37.7lb (17.1kg) pounds for the motor
- - Overhung 52mm Xmax, 76.2mm Xmech precision aligned excursion
- - 8-layer aluminum flat wire edge wound 3” voice coil for ultra-low distortion, efficient heat dissipation, exceptional linearity and nearly zero power compression.
- - Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
- - All-new High density FEA-optimized cast aluminum basket provides unequaled levels of rigidity, tensile strength, and energy transference available from a subwoofer.
- - Dual 24-strand copper and Nomex composite high-temperature leads woven through the suspension provide a pristine electrical connection from the amplifier to the voice coil.
- - Premium glass fiber laminated dustcap and reinforced and vented paper-composite cone sub-structure ensure a light, rigid, and neutral radiating surface.
- - Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.
- - Extreme oversized low carbon vented steel U-yoke and top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
- - Copper ring shorting sleeve reduces gap induction and distortion, enhances thermal conductivity
- - Nickel-plated high-tension spring terminals
- - Proprietary injection molded gasket and parabolic SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control
- - Low carbon 1008 steel components with black electrophoresis plating
- Included Accessories:
- - Protective non-resonant steel mesh grill
- - IR remote control
- - Elastomer feet included
- - Extra heavy-duty, high current 6' power cord
- - SB-4000 Subwoofer Manual
- - Quick Start Guide
